Product features：
compact；
Light weight；
Long ranging distance, up to 100m；
High precision, up to 1mm；
High and low temperature resistance - 30~+55 ℃,
性能参数
Model | PLS-A100 |
Indoor range | 0.03-100m |
Outdoor range |
0.03-30m |
Output frequency | 3Hz or 20Hz (selectable) |
Absolute accuracy | ±2mm |
Resolution | 1mm |
Blind area | 3cm |
Light | 635nm，<1mW,Red laser, Class II safety laser |
Communication interface |
RS485\RS232\TTL\4~20mA\0~5V |
Operating temperature | -30℃---+55℃(High and low temperature payment) |
Working voltage | DC+24V |
Working current | 20mA |

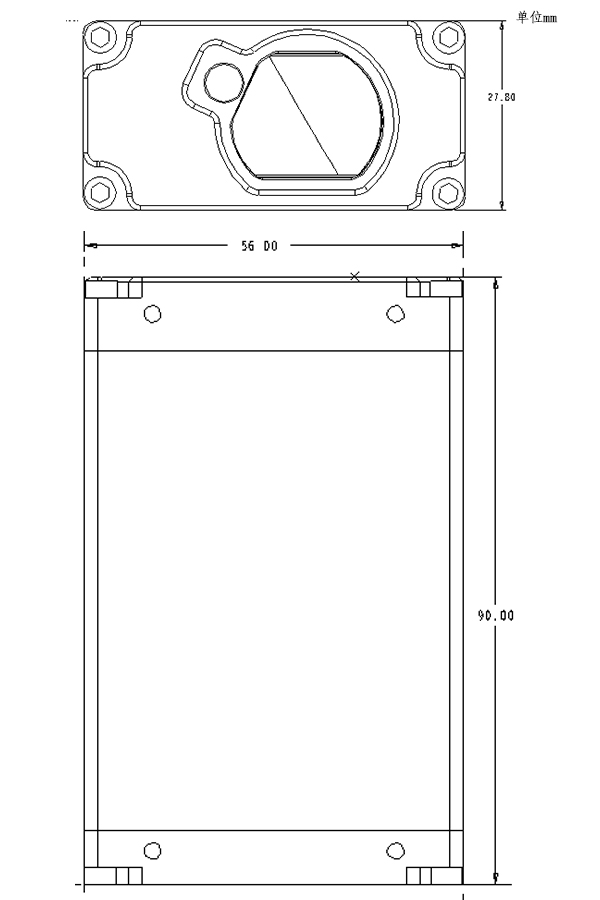

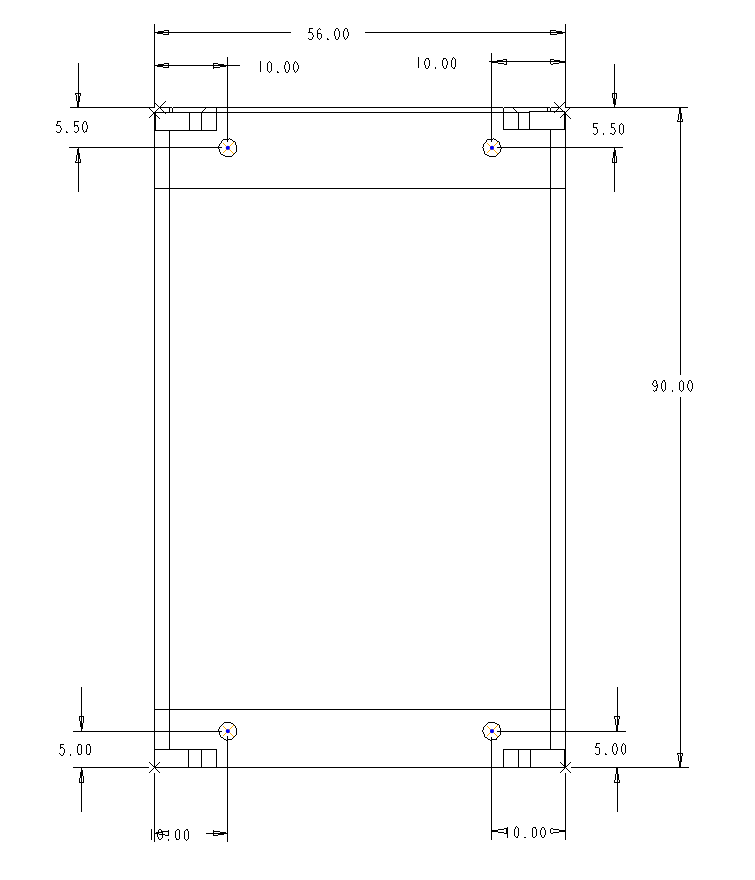

Volume | 35*62*91mm |
