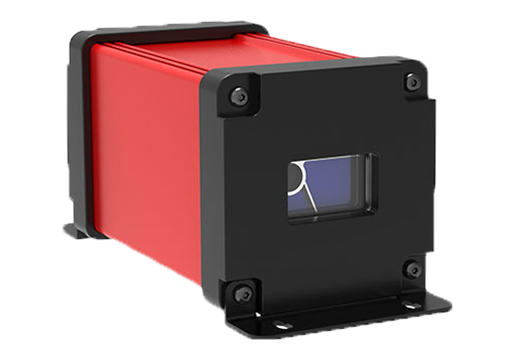

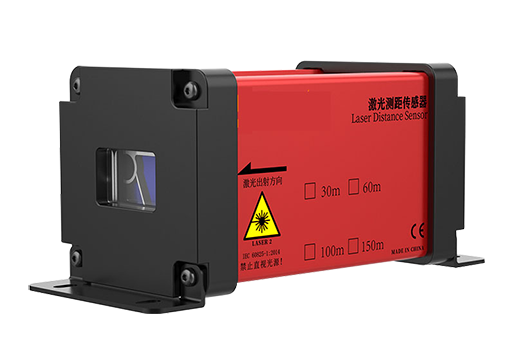

The PLS-Pro100 laser ranging sensor adopts the principle of time-of-flight phase method, which can quickly measure the distance value of the target through laser transmission and reception. Under outdoor sunlight, the effective detection distance can reach 100m; The response time is fast, up to 0.03 s for one measurement, which can track and measure the real-time position of moving objects; The accuracy is up to 1mm, which can effectively display 0.1mm bit.
PLS-Pro100 laser ranging sensor, with its multiple advantages of large range, high precision and fast response, is suitable for location and deformation monitoring of outdoor harsh working conditions such as ports, steel plants and tunnels.
Laser ranging sensors with accuracy of 1mm, frequency of 30Hz and measuring distance up to 100m are suitable for the following applications:
The material transportation and storage management in the field of logistics such as airport and wharf can provide high-precision distance measurement and positioning information, realize intelligent logistics management and improve storage efficiency.
Measuring the precise position of equipment and machines in the workshop for heavy industry production such as steel and coal mine, helping to improve production efficiency and the accuracy of process control.
Railway, highway and other transportation fields, can be used for high-precision ranging and vehicle positioning, traffic flow statistics and accurate supervision.
Military industry, which can be used for ground object measurement and detection, providing critical information such as combat deployment and military target location.
Mine, oil field and other industrial industries, can be used for underground vehicle location measurement and ore storage management.
In the field of architecture and engineering, it can be used to measure the height and shape of buildings and tall buildings, providing more accurate data support for architectural design and real estate industry.
In short, this kind of laser ranging sensor with high precision and long measuring distance has a wide range of application prospects in many fields, providing more accurate and reliable measurement and positioning technical support for the corresponding industry.
Model number | SK-Pro30A | SK-Pro60A | SK-Pro100A | SK-Pro150A | SK-Pro200A | |
Measuring range | 0.05~30m | 0.05~60m | 0.05~100m | 0.05~150m | 0.05~200m | |
Resolution | 0.1mm | |||||
Repeatability | 0.5mm | |||||
Accuracy | 1mm | |||||
Measurement rate | 30Hz(adjustable) | |||||
Response time | Min 0.033s | |||||
Measuring object | Natural surfaces or dedicated reflectors forstatic or dynamic targets | |||||
Ambient light effect | Resistance to outdoor sunlight 100kLux | |||||
Illuminant | Wavelength 650~660nm red visible laser | |||||
Laser grade | 1 (IEC 60825-1:2014, EN60825-1:2014) | |||||
Typical spot diameter | Φ2mm(10m ) | |||||
Laser lifetime | Above 100000h | |||||
Power supply | DC7~26V | |||||
Power dissipation | <1.5W | |||||
Shell material | Aluminium alloy | |||||
Lens material | Quartz glass | |||||
Size | 116×65.65×65.65mm | |||||
Class of protection | IP65 | |||||
Weight | 560g | |||||
Operating temperature | -20~+60℃ | |||||
Install | Equipped with support 4*M3 |
