PLS-K1000 ranging module can be quickly and accurately realized to provide distance measurement for the main control system (speed measurement is optional), this module uses 905nm semiconductor laser, ranging resolution is 0.1m, ranging accuracy is 1m, the farthest measuring range in 600 meters, 1800 meters two range types; With TTL interface (can directly communicate with MCU), but also through the adapter to TTL serial port communication (need data transfer wire); At the same time, it provides host computer test software and instruction set communication protocol, which is convenient for customers to develop the second time and build their own range-leveling system. Is a high integration, low power consumption, light weight range sensor.

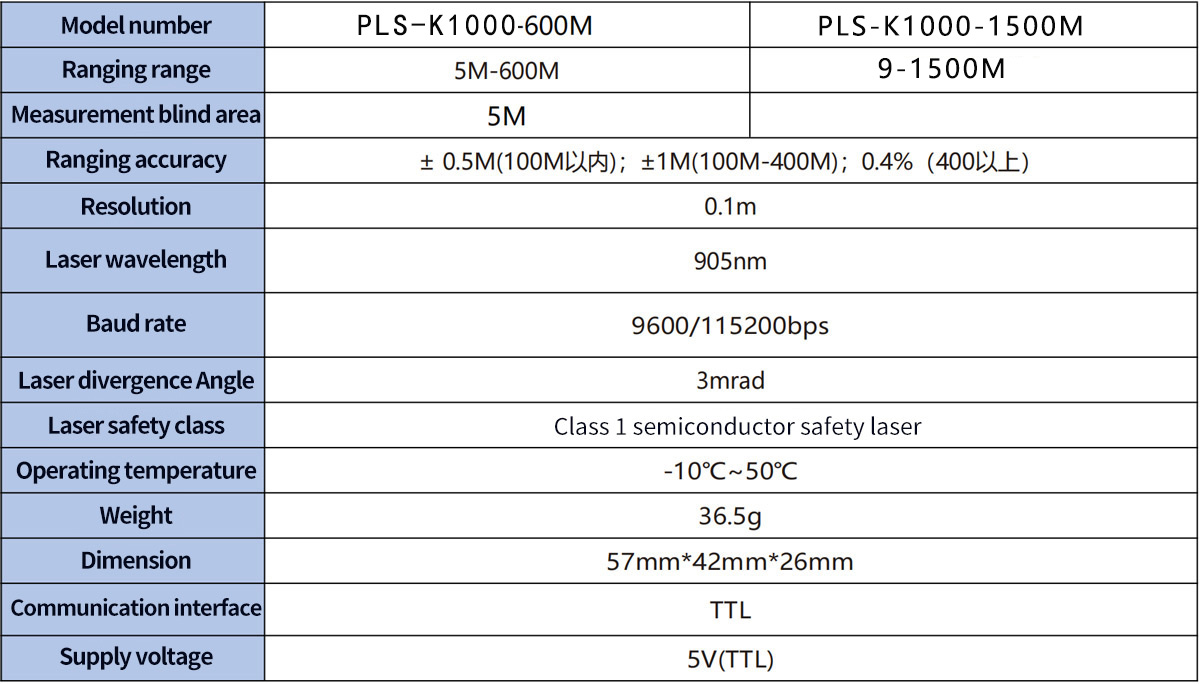

Performance parameter
