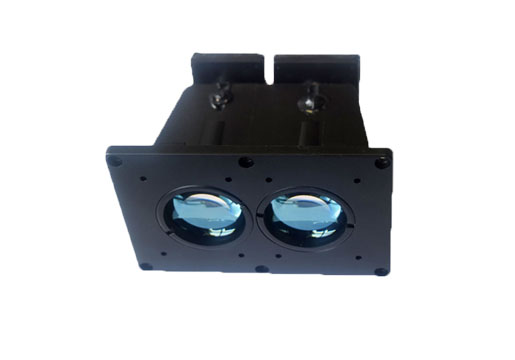

PLS-100 Outdoor 100m Large Range High Frequency Module
  • 1.The highest measuring frequency is 14KHz.;Outdoor measurement distance is 100 meters.;
  • 2Measuring distance::0.5m~100m
  • 3.Measuring rate:4KHz/14KHz
  • 4.Resolution: 1cm Repetition accuracy: ± 5cm
  • 5.Supported interface:UART TTL/RS485

       网站主图

       The PLS100 is a newly introduced cost-effective long-distance high-speed laser ranging module. It has a high output frequency, allowing for quick response. It is used for detecting fast-moving objects and for detecting the environment around fast-moving objects. Its ranging speed, measurement accuracy, and detection distance meet the needs of most customers. The product is widely used in many fields. Features: Long range: .5m to 1m, high measurement frequency up to 14KHz, uses a first-class eye-safe protection laser compliant with international and domestic standards, 95nm invisible light.

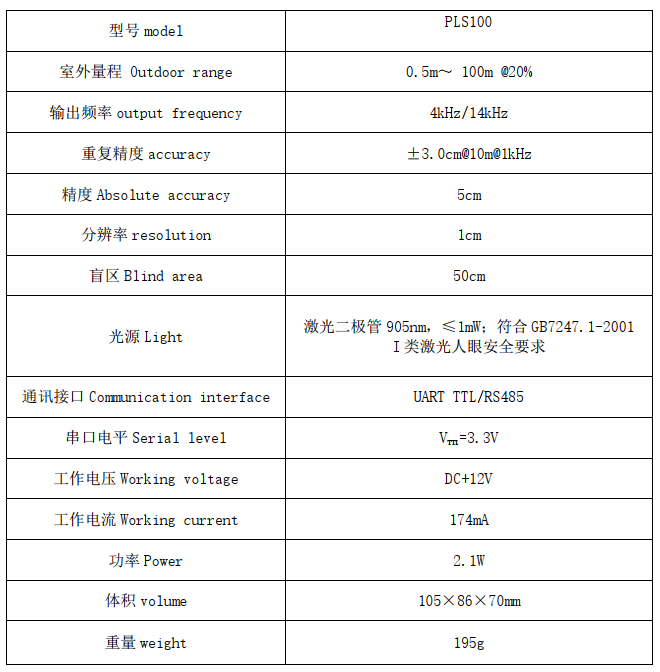

技术参数

16970014973481697001569868
