Product

Starting from user needs and user experience, we design products with our own style for you

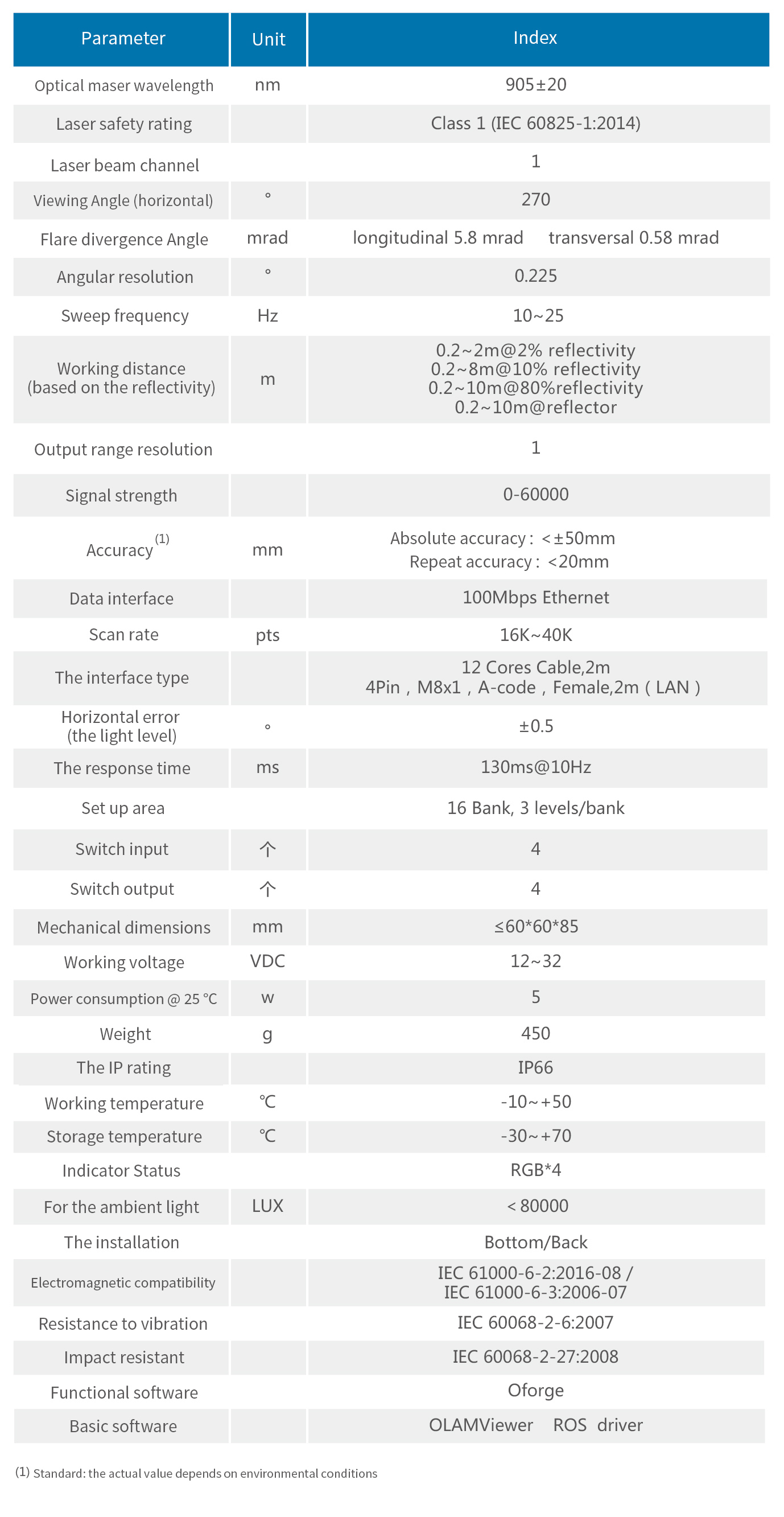

LR-1BS2 | 10m Navigation Obstacle Avoidance
  • 1.regional protection; Obstacle avoidance; navigation
  • 2.Scanning Angle: 270 °
  • 3.Scanning radius: 10 m
  • 4.Angular resolution:0.225°
  • 5.Sweep frequency: 10 ~ 25 Hz
  • 6.Range resolution: 1 cm

Ømain feature

lApply to the safe obstacle avoidance and regional protection, detection ability of 20 m,

lSwitch push-pull output, and at the same time with point cloud data (can also do single control PLC point cloud obstacle avoidance strategy),

l0.225° fixed angular resolution, and + 0.01 ° Angle precision,

l±0.5° precision level Angle, to ensure that the horizontal distance,

lAre free to set the safety area, 16 BANK, level 3 protection grade,

lCertificationFCC,EMC,CE,RoHS,REACH, FDA,

lProtection grade:IP66
