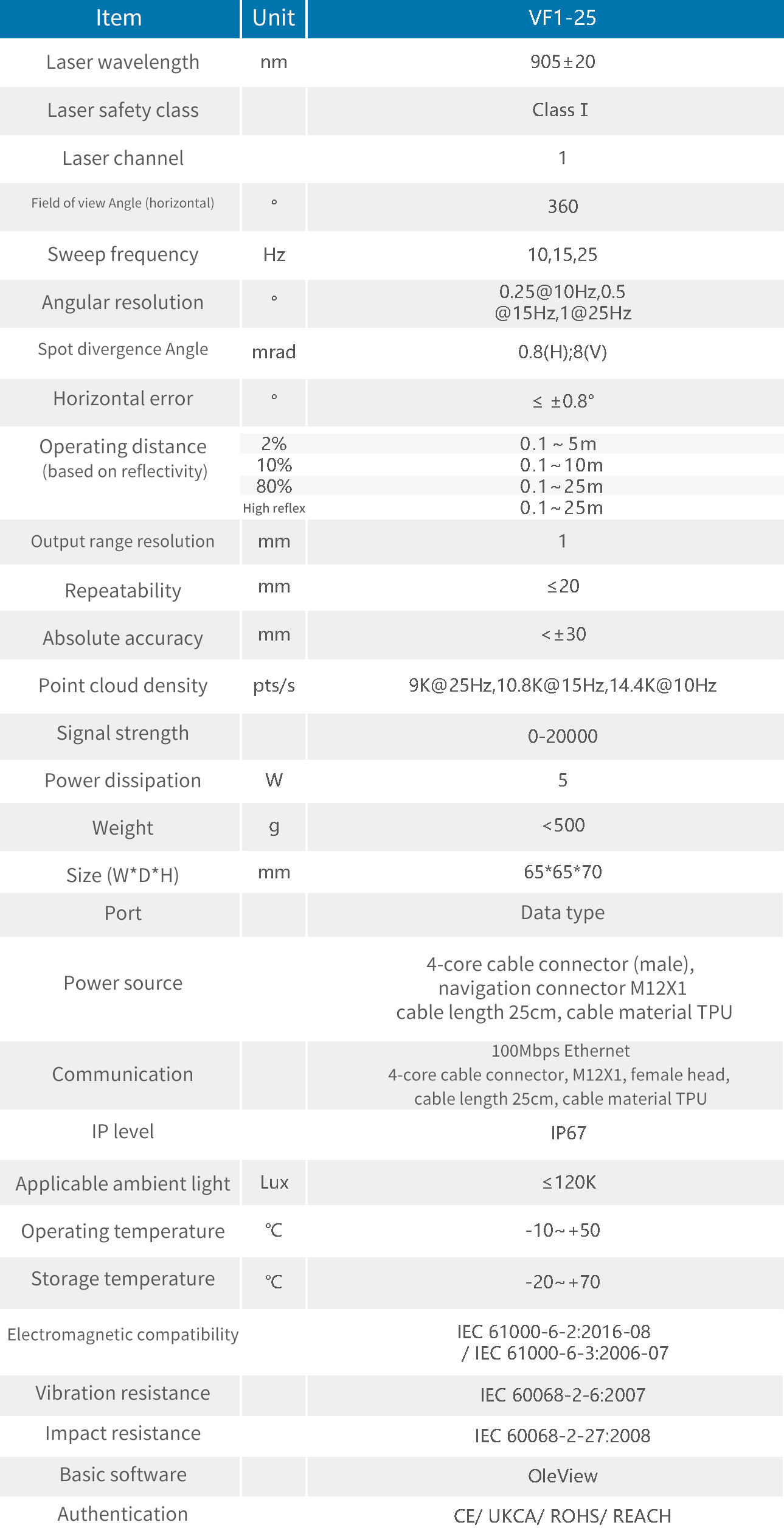

VF | 25m 2D 360 ° laser scanning radar
  • 1.Navigation and obstacle avoidance; Outdoor scanning radius 25m; Resistance to sunlight interference > 120K Lux
  • 2.Scanning rate: 10/15/25Hz
  • 3.Angular resolution: 0.25@10Hz, 0.5@15Hz, 1@25Hz
  • 4.Working distance (based on reflectivity) 0.1~5m (2%); 0.1~10m(10%); 0.1~25 (80%/ high inverse)
  • 5.Field of view (horizontal) : 360°
  • 6.Accuracy: Absolute accuracy: ≤±30mm repetition accuracy: <20mm
  • 7.Interface: data type,Operating temperature: -10~+50℃

网站主图





The ability to detect the reflectance of 4% black targets is greater than 8 meters; 1P67 waterproof ability: anti-sunlight interference ability>120K Lux:ESD level up to Level4(EN IEC 61000-4-2:2009) 8KV contact discharge; 15KV air discharge; When used in the environment below moderate rain, it still has the detection capability; High reliability industry standard connectors and fittings.
