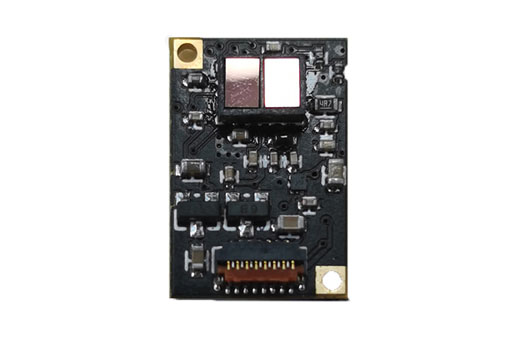

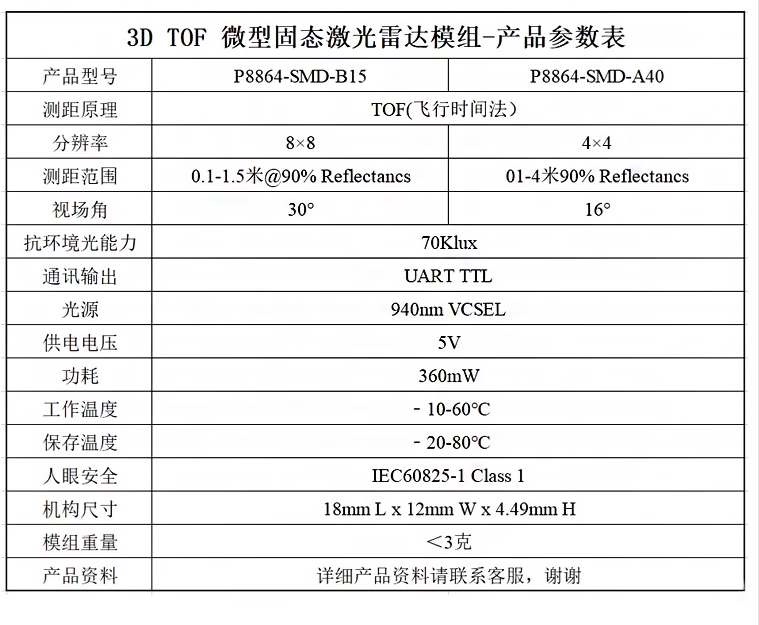

P8864-SMD | 1.5m/4m 3D array small module
  • 1.The micro; The cost is low; Solid state; Obstacle avoidance
  • 2.The view Angle of FOV: 32 °
  • 3.Depth range: 0.1 ~ 4 m
  • 4.Resolution: 8 * 8 64 pixels
  • 5.Communication: the TTL serial port
  • 6.Size: 18 * 12 * 4.5 mm,Light source: 940 nm

网站主图-恢复的

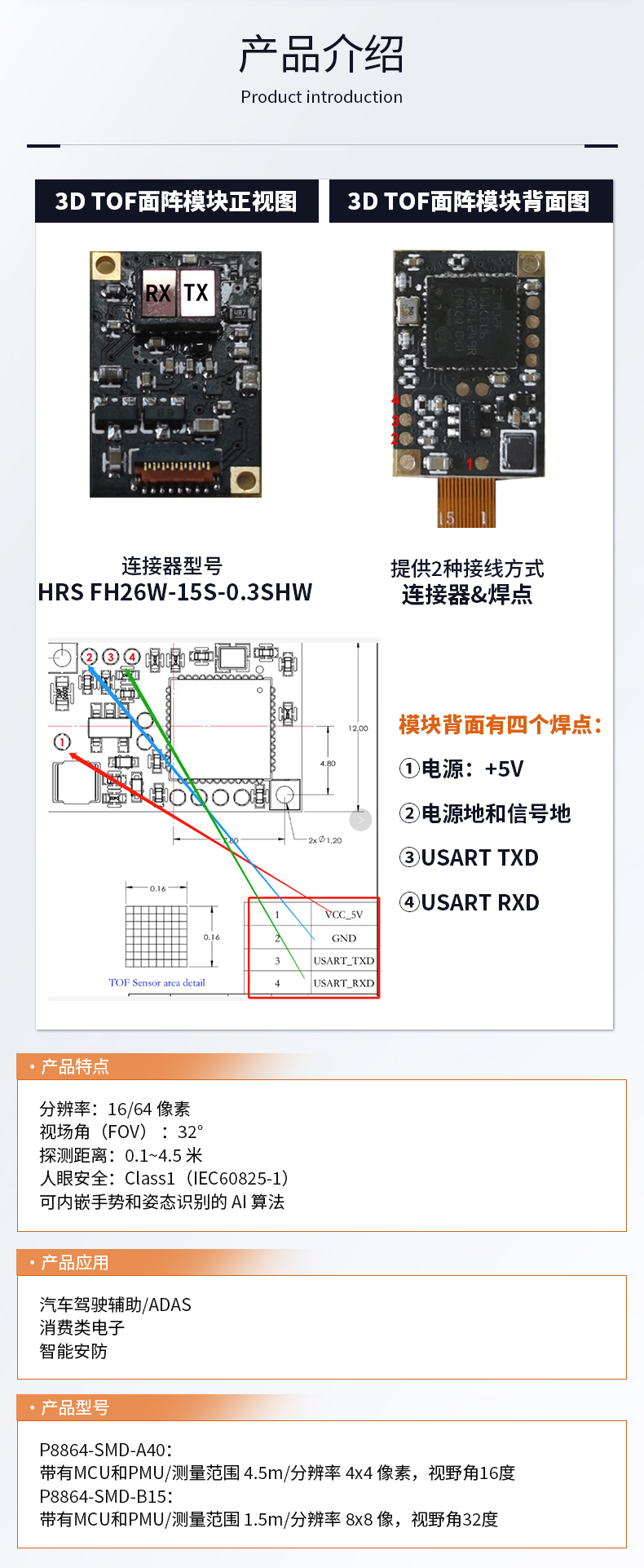

P8864 - SMD - B15 series products are 3d TOF micro sensor module, 3d TOF integration up to 8 by 8 64 pixels (time of flight) sensor, microprocessor and optional - PMU - 2 (power management unit). This module provides information on the depth and intensity of each pixel, measurable 5 meters (please refer to the detailed part number), suitable for the room, inside or outside environment.
